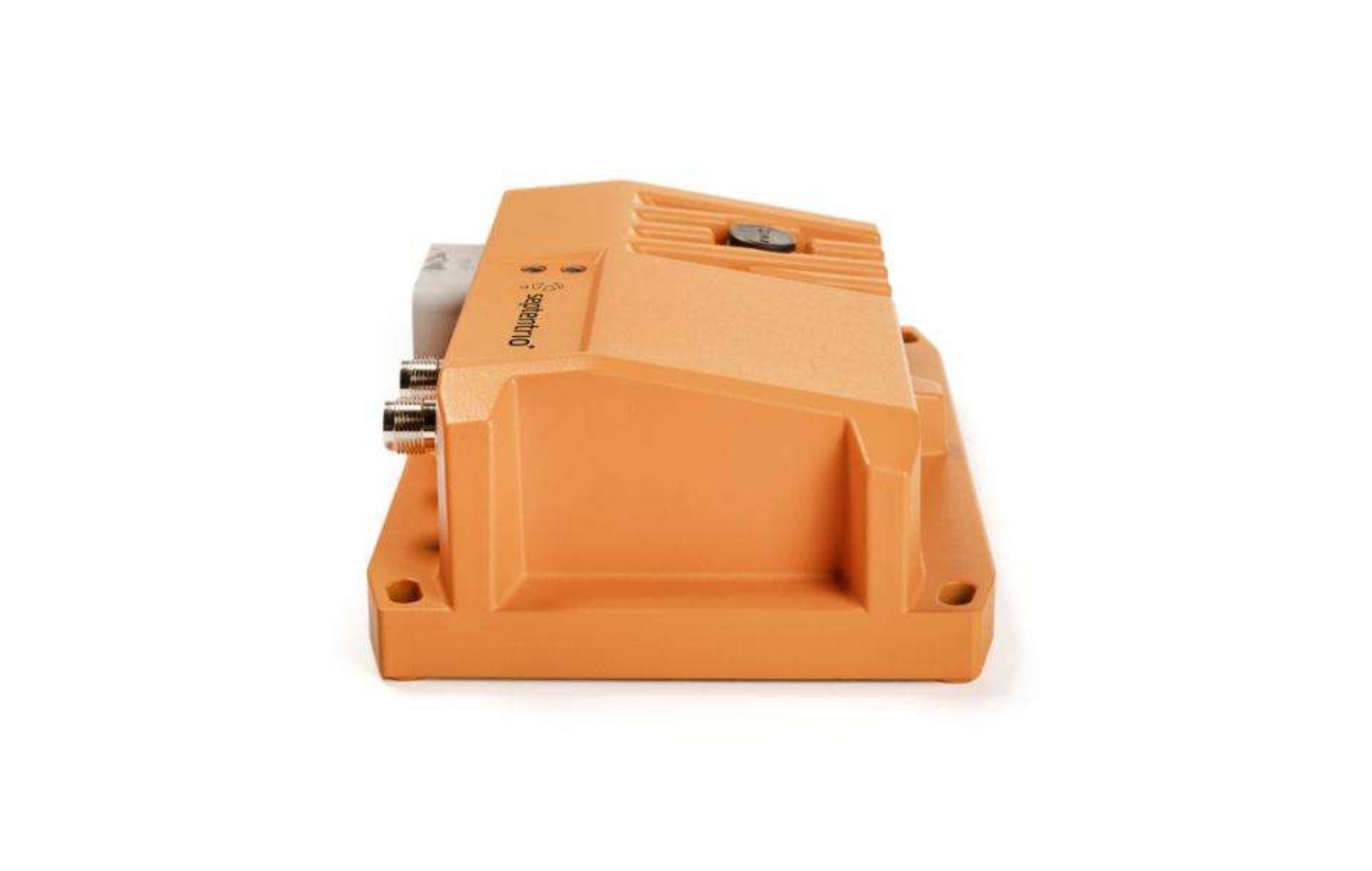

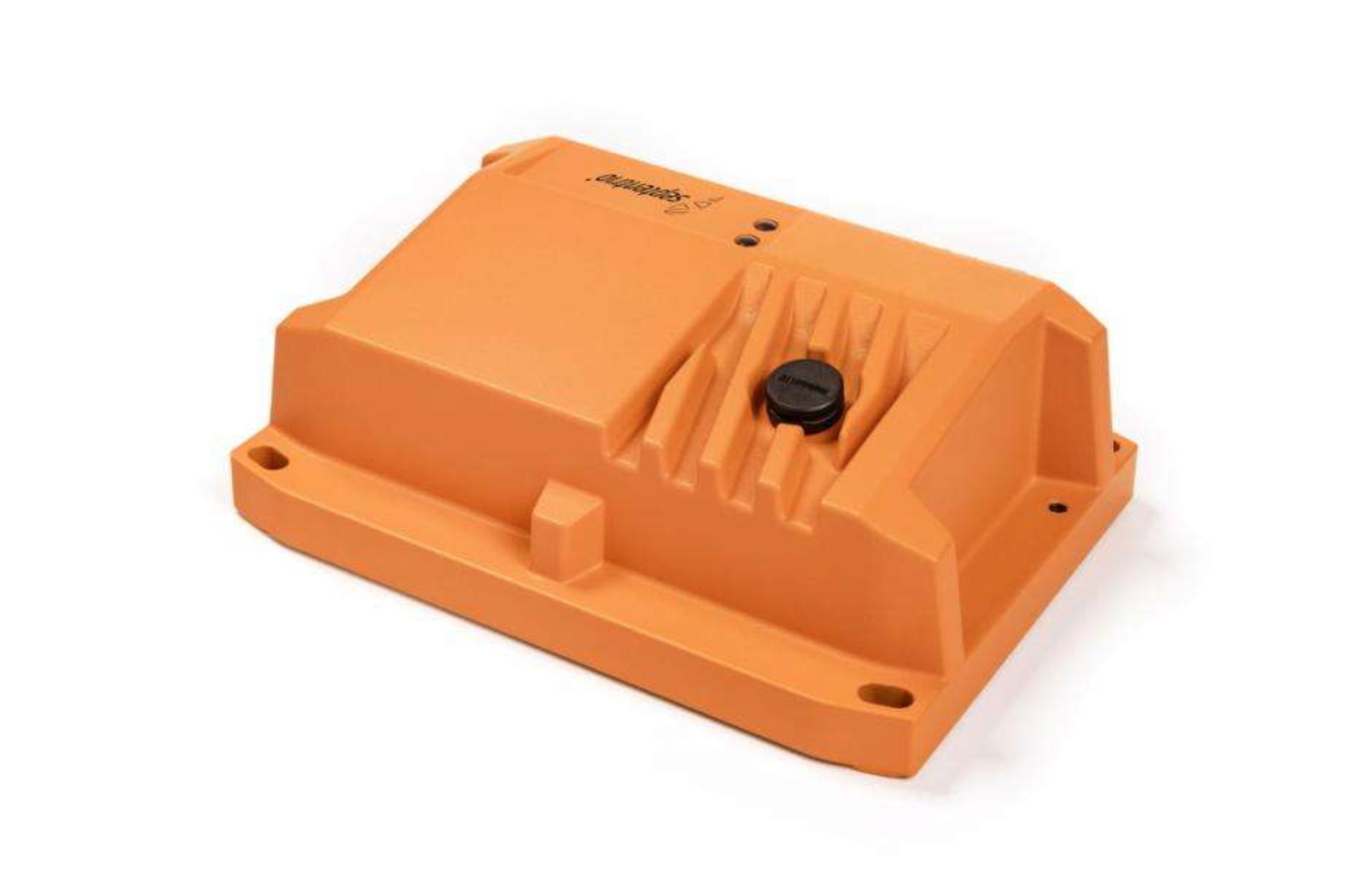

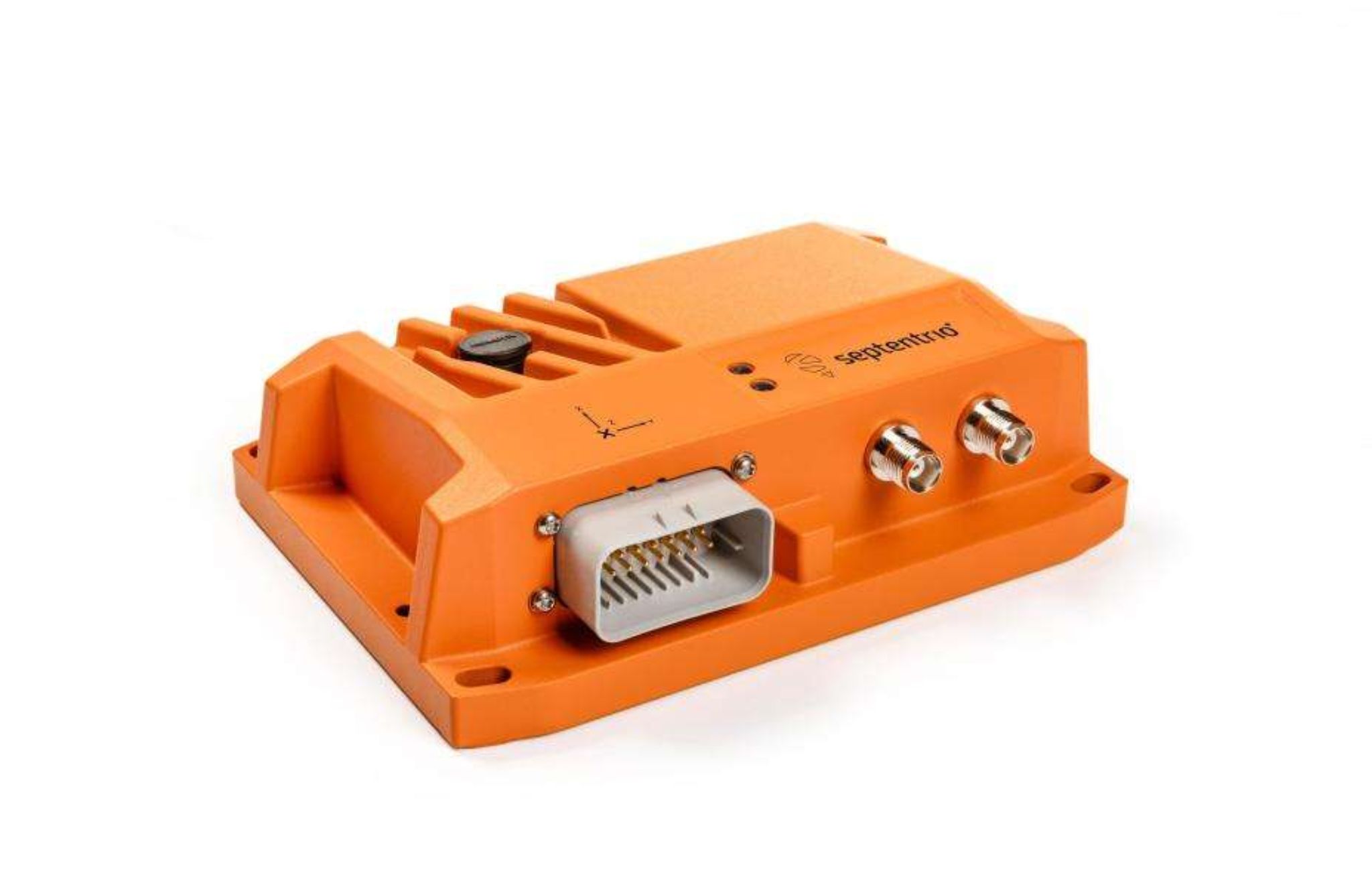

Septentrio AsteRx RBi3 Pro+
8,190.00$
The AsteRx RBi3 Pro+ is a rugged, IP69K-rated GNSS/INS receiver delivering centimeter-level RTK positioning and precise orientation with heading, pitch, and roll data. Designed for harsh industrial and machine control environments, it supports multi-frequency, all-constellation tracking and sub-degree GNSS heading. Powered by Septentrio’s GNSS+ algorithms—including LOCK+ for vibration resilience—it ensures reliable performance under the toughest conditions. With update rates up to 100 Hz, flexible use as rover or base station, and an intuitive Web UI with automatic lever arm optimization, the AsteRx RBi3 Pro+ integrates seamlessly into any application.
Description
AsteRx RBi3 Pro+ – High-Precision GNSS/INS Receiver for Extreme Environments
Reliable Centimeter-Level Positioning with Orientation
The AsteRx RBi3 Pro+ is a multi-frequency GNSS/INS receiver engineered for centimeter-level positioning accuracy and precise orientation in the harshest working conditions. Designed for machine control and industrial automation, it delivers uninterrupted reliability even under extreme temperatures, corrosive environments, and strong vibrations.
With its robust, compact design, the AsteRx RBi3 Pro+ ensures flexible installation without compromising performance.
Exceptional Reliability in Harsh Environments
Built to perform where others fail, the AsteRx RBi3 Pro+ combines ultra-rugged housing, multi-frequency GNSS tracking, and Septentrio’s GNSS+ algorithms to maintain consistent accuracy in the toughest conditions.
Its high update rate and low-latency output enable fast feedback loops, ideal for machine control, robotics, and dynamic vehicle applications where real-time precision is essential.
Seamless Positioning with Integrated INS
The integrated Inertial Navigation System (INS) ensures continuous and stable positioning even during short GNSS outages, such as when operating under bridges, near tall structures, or in tunnels.
In dual-antenna configuration, the receiver provides precise heading independent of movement, available instantly upon startup—a critical advantage for systems requiring rapid initialization and accuracy from the first second of operation.
Effortless Integration and Control
Engineered for easy system integration, the AsteRx RBi3 Pro+ includes fully documented interfaces, open communication protocols, and comprehensive command libraries.
Using Septentrio’s intuitive WebUI and RxTools software suite, users can quickly configure, monitor, and analyze receiver performance from any desktop or mobile device, streamlining setup and field operations.
Technical Specifications – AsteRx RBi3 Pro+ GNSS/INS Receiver
GNSS Technology
-
Hardware Channels: 554
-
Supported Constellations:
-
GPS: L1 C/A, L1PY, L2C, L2P, L5
-
GLONASS: L1 C/A, L2 C/A
-
BeiDou: B1I, B2I, B3I
-
Galileo: E1, E5a, E5b, E5 AltBOC
-
QZSS: L1 C/A, L2C, L5
-
Septentrio GNSS+ Technologies
-
AIM+ – Advanced anti-jamming and anti-spoofing with real-time interference monitoring and mitigation
-
FUSE+ – Fusion of RTK GNSS and inertial sensor data for enhanced stability and continuity
-
APME+ – Advanced multipath mitigation for precise performance in reflective environments
-
LOCK+ – Maintains superior signal tracking under high mechanical shocks and vibration
-
IONO+ – Mitigation of ionospheric scintillation for consistent RTK reliability
-
RAIM+ – Receiver Autonomous Integrity Monitoring for high-confidence positioning
Interfaces
-
High-speed Serial Ports (RS232): 3
-
Ethernet Port (TCP/IP, UDP, LAN 10/100 Mbps): 1
-
Power over Ethernet (PoE): Supported
-
High-speed / Full-speed USB Device Port: 1
-
FTP Server: Built-in
-
Internal Memory: 16 GB
Integrated Position Accuracy
-
Standalone (Horizontal): 1.2 m
-
Standalone (Vertical): 1.9 m
-
SBAS (Horizontal): 0.6 m
-
SBAS (Vertical): 0.8 m
